Network cameras suitable for Embedded applications.

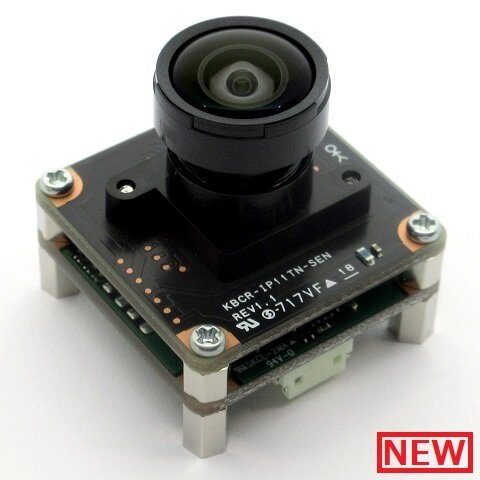

The smallest of our network cameras (LAN cameras) with a board size of 29x29 mm / 2 boards
(Conventional products were 40x30 mm / 3 boards).
It can be installed in small spaces, contributing to the downsizing of equipment.
Specifications
| Image sensor | 1/4-inch CMOS color sensor/ rolling shutter |
|---|---|
| Image area | 3.840 × 2.160 mm |
| Frame Rate | Select from 60fps, 30fps, 15fps, 10fps, 5fps, 1fps |
| Output resolution | [16:9]1920x1080, 1280x720, 640x360 [4:3]1440x1080, 1280x960, 640x480 (Side cut) |
| Communication Interface | Ethernet 100BASE-TX (8pin Nylon connector) |
| Power supply | DC 24.0 / 12.0 / 5.0V（4pin Nylon connector） |
| Communication protocol | RTSP/RTP/HTTP/UDP/DHCP |
| Function | Automatic Exposure Control, Automatic Gain Control, Automatic White Balance, and Various image adjustment functions (software control） |
| Power consumption | 1.5W (Max) |
| Operating temperature | -10 ～ +60℃ |
| Storage temperature | -20 ～ +70℃ |
| Sample software for evaluation | Includes evaluation configuration tool & sample code (C#) for Windows that enables communication with various communication protocols (excluding DHCP). |
Dimensions (lens mount for M12 board lens attached)
Accessories included with sample camera purchase
| Lenses can be selected from our line-up. | ||
| 1m USB cable（Camera to type-A） | ||
| 1m LAN cable (Camera to RJ45) | ||
| Product specifications, Communication specifications, Sample software (for evaluation) |
