Congestion Detection Camera

Features

  • With the image processing function installed in this product, users are able to detect congestion only by cameras.
  • Multiple detection areas are settable at optional locations and the congestion rate and timings for detecting congestion are also configulable as options.
  • A LAN connection enables users to operate several cameras simultaneously and is ideal for large commercial facilities.


　　The sale of this product has been discontinued.

Congestion Detection Camera

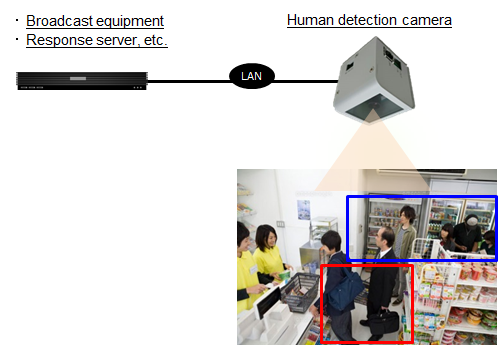

Functional configuration

congestion detection camera_functional configuration.png

Dimensions


Specifications

Congestion detection camera

Function

Function of setting detection areas

The congestion degree and congestion duration are settable.

*Individual 4 detection areas per 1 visual field are settable.

Scheduling function

Operating days and times in certain weeks, and optional dates and times settable
History function/
Browsing funtion

Date and time/ images at the time of detecting congestion can be browsed.

Communication funtion between cameras　

Cover wide areas by operating several cameras simultaneously
Specifications Image sensor and pixels 1/4-inch CMOS color sensor/ 0.3 Megapixels
Power voltage DC 5.0 V or power supply by PoE HUB (IEEE 802.3af complied)
Power consumption 5 W (max.)
Valid detection range 2 to 5m2　*This range is changeable by exchanging lenses.
Dimensions 56 mm (H) × 58 mm (W) × 58mm (D)
Weight 250g and less
Warranted operating temperature 0 to 50℃
Warranted operating humidity 80% and less
Network 100 BASE-TX/ 10 BASE-T(AUTO-MDIX compatible)
Tested OS Windows 7　32 bit/ 64 bit
*Due to the support of USB Video Class, this product is available regardless of OS.

Product lineup


KBCR-I01VCCD1L (wired LAN type)

100Base-TX compatible with POE
