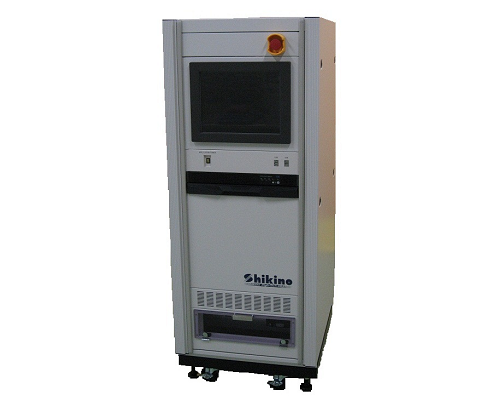

Analog Tester
AITS

Features

  • Simultaneous measurements of up to 4 DUTs
  • Constant voltage/current sources of ±40 V/±2 A
  • Per-pin system (ground sense function for each channel)
  • AnyPin function for tester resources such as per-pin and relay control
  • Low cost
  • Space-saving design
  • Superior debugging functions
  • Self-calibration features

AITS

Specifications

DC module
VIC/ P

(Constant voltage/
current source)
Number of channels Max. 128 ch (4 ch/ board)
Output range ±40 V/ ±300 mA
Resolution 16 bits (voltage and current)
Voltage range 2/ 8/ 32/ 40 V
Current range 3/ 30/ 300 mA  3/ 30/ 300 μA
HVIC/ P Number of channels Max. 4 ch (1 ch/ board)
Output range ±40 V/ ±2 A
Resolution 16 bits (voltage and current)
Voltage range 2/ 8/ 32/ 40 V
Current range

2 A

3/ 30/ 300 mA  3/ 30/ 300 μA

Time measurement module
Time measurement Number of channels 4 ch/ board
Input voltage range ±50 V
Frequency measurement 100 MHz
Resolution 100 ps
Impedance 50 Ω and 1 MΩ
Other enabled modules
Optional module

Modules by National Instruments

  ○Function module

  ○High-precision voltmeter

  ○Digitizer, etc.

Others
Software

Test programming language: MBASIC, Shikino's original language

Data processing (histogram and others): Negotiable

Compatible tool from the test programs of other brands: Negotiable

Test head Negotiable
Simultaneous measurements 1 to 4 DUTs
Calibration Automatic (VIC/ P board and others)
Self-diagnosis External self-diagnosis box
External I/ F

Handler/ Prober, USB2.0 and LAN (10/ 100/ 1000 Base-TX)

GPIB and connector for controlling a self-diagnosis box

Dimentions (W×H×D) 600 × 1600 × 700 mm
Weight 300 kg and less
Power consumption 2000 VA and less
Safety measures

Electricity leakage/ temperature/ smoke detection system

UPS (uninterruptible power supply)

The product design and its specifications may be modified for improvement without any prior notice.
