Specifications

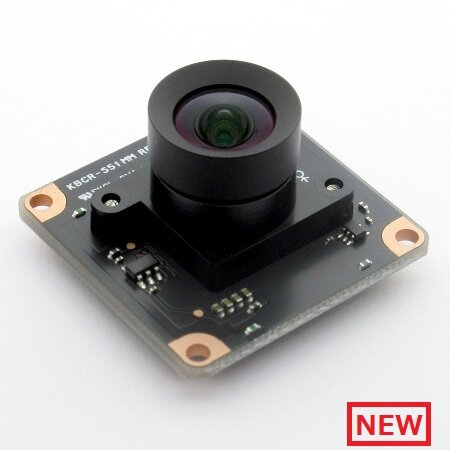

| Image sensor | 1/4.51-inch CMOS image sensor (monochrome) |
|---|---|
| Total number of pixels | 1440 x 1080, 1280 x 960, 640 x 480 |
| Image area | 3.2 × 2.4 mm |
| Output signal format | MIPI CSI2 up to 4-lane (RAW 10bit) |
| Interface | 26pin FFC connector 3pin connector (optional extra connector) |
| Function | Automatic Exposure Control, Automatic Gain Control |
| Power supply voltage | DC 3.3V |
| Power consumption | 0.6W (max.) |
| Operating temperature | -10℃～+60℃ |
| Storage temperature | -20℃～+70℃ |
NIR High Sensitivity
NIR (Near Infrared) high sensitivity CMOS sensor is adopted (Relative QE 62%@850nm/39%@940nm).
With the combination of IR-LED lighting, high-sensitivity imaging in the near-infrared is possible.
Customized optical filters such as visible light cutoff are available.
Connection to a single board computer (SBC)
Connection to Single Board Computer (SBC) is possible.
A 26-pin to 22-pin conversion board (Covert Board) is available for connection, allowing easy connection to
the 22-pin or 15-pin MIPI CSI-2 connectors used as standard on Raspberry Pi and other devices.
*Connections to 15-pin connectors are made using a commercially available 22-pin⇒15-pin conversion FPC.
List of connectable SBCs
| Board | MIPI CSI-2 Connector | Connection | Operation check |
|---|---|---|---|
| Raspberry Pi 5 | 22pin | w/ Convert Board | done |
| Raspberry Pi 4 | 15pin | w/ Convert Board & 22->15pin FPC | not done |
 |
15pin | w/ Convert Board & 22->15pin FPC | done |
 |
15pin | w/ Convert Board & 22->15pin FPC | done |
*Raspberry Pi is a trademark of Raspberry Pi Ltd.
*Armadillo is a trademark of Atmark Techno, Inc.
Dimensions
*The values of (α, β, γ, δ) change depending on the attached lens or the working distance.
