MIPI IP core series list
|
|
D-PHY |
Rx |
Tx |
Number of Lane |
(bps/Lane) |
||
|
CSI-2 series |
SHSA0001 |
○ |
○ |
－ |
1-4 |
80M～1500M |
|
|
SHSA000２ |
○ |
－ |
○ |
1-4 |
80M～1500M | ||
|
DSI series |
To be develoed |
○ |
○ |
－ |
1-4 |
80M～1500M |
|
|
To be develoed |
○ |
－ |
○ |
1-4 | 80M～1500M | ||
MIPI IP core
MIPI CSI-2 IP and MIPI DSI IP core comply with the MIPI standerd and they work on FPGA.
They forward serial data from Camera to Application Processer.
Features
- Complying with MIPI alliance standard.
- Supports various image formats. Realize full high vision display speed.

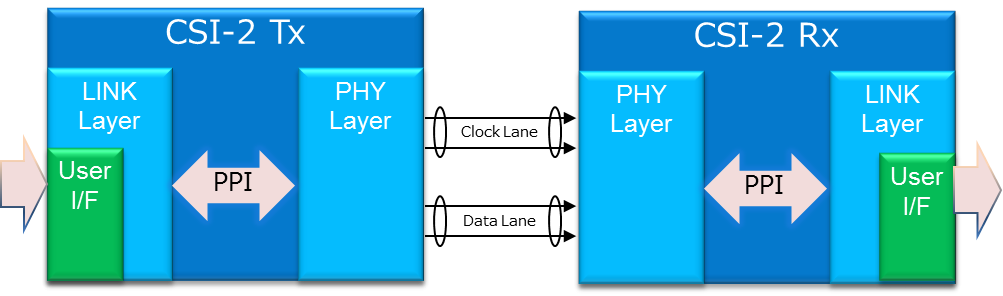

- This IP has PPI(Phy Protocol I/F) and , it's possible to supply only either LINK layer or PHY layer.
Purposes
- Mobile device, overall industrial instrument using FPGA
